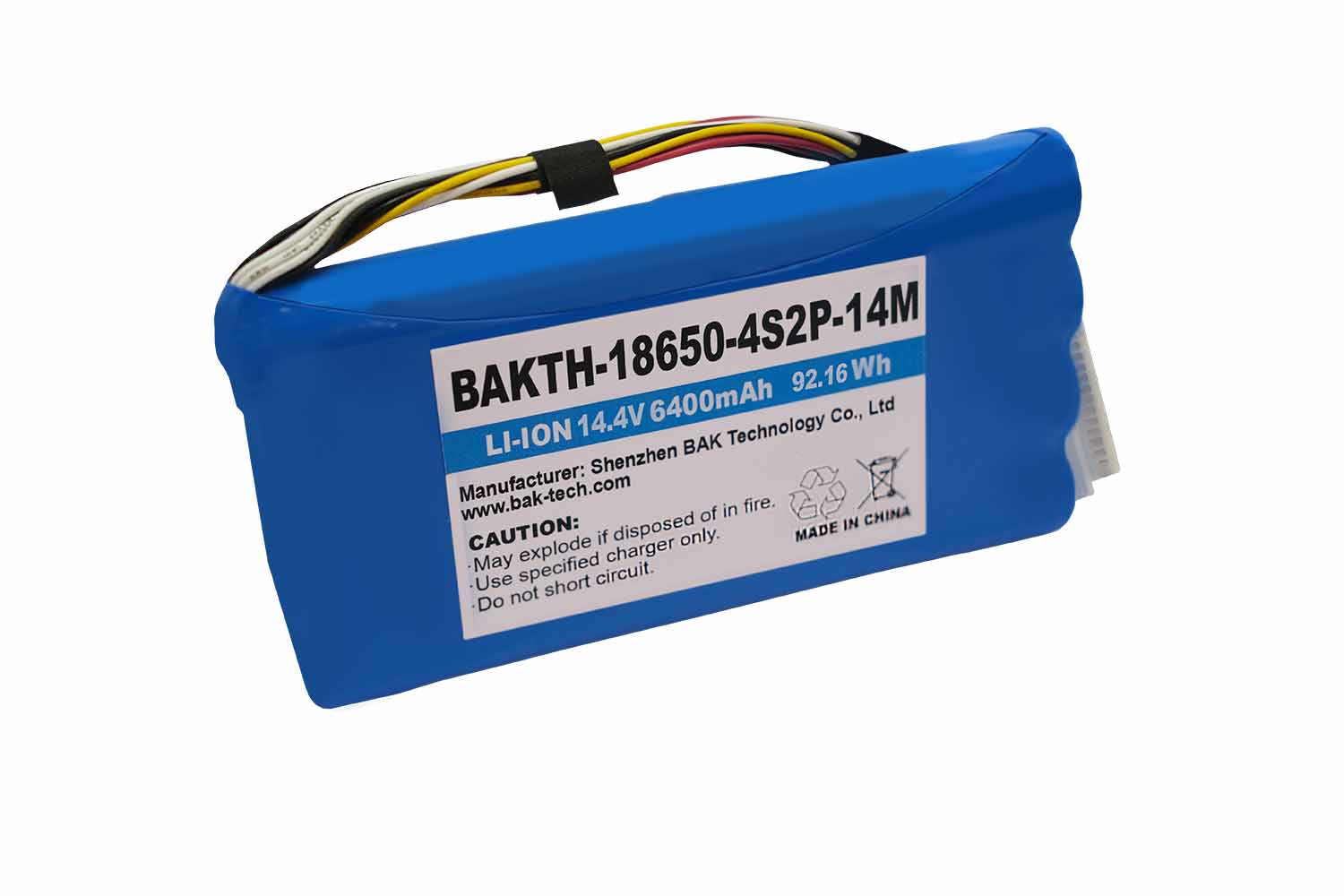

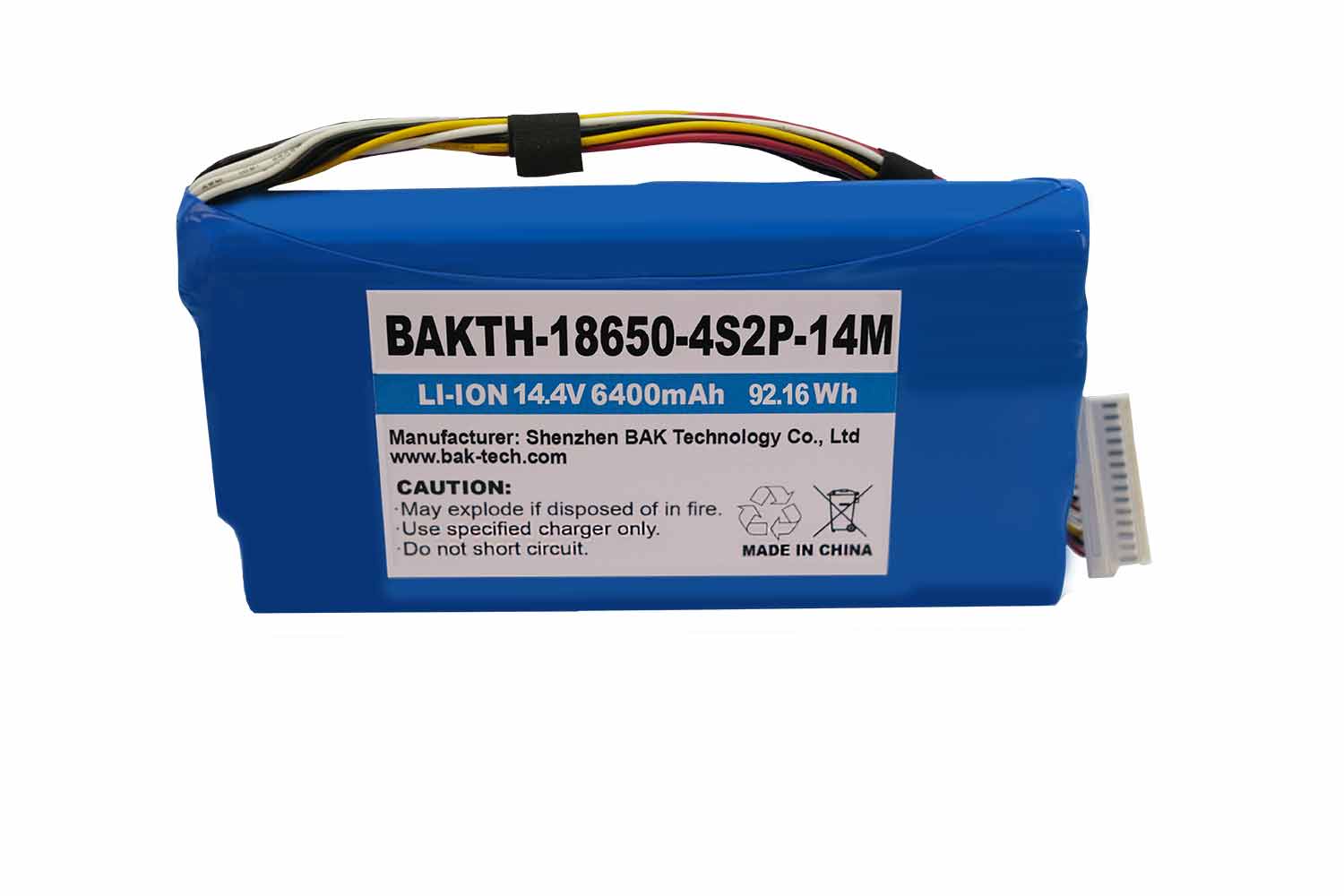

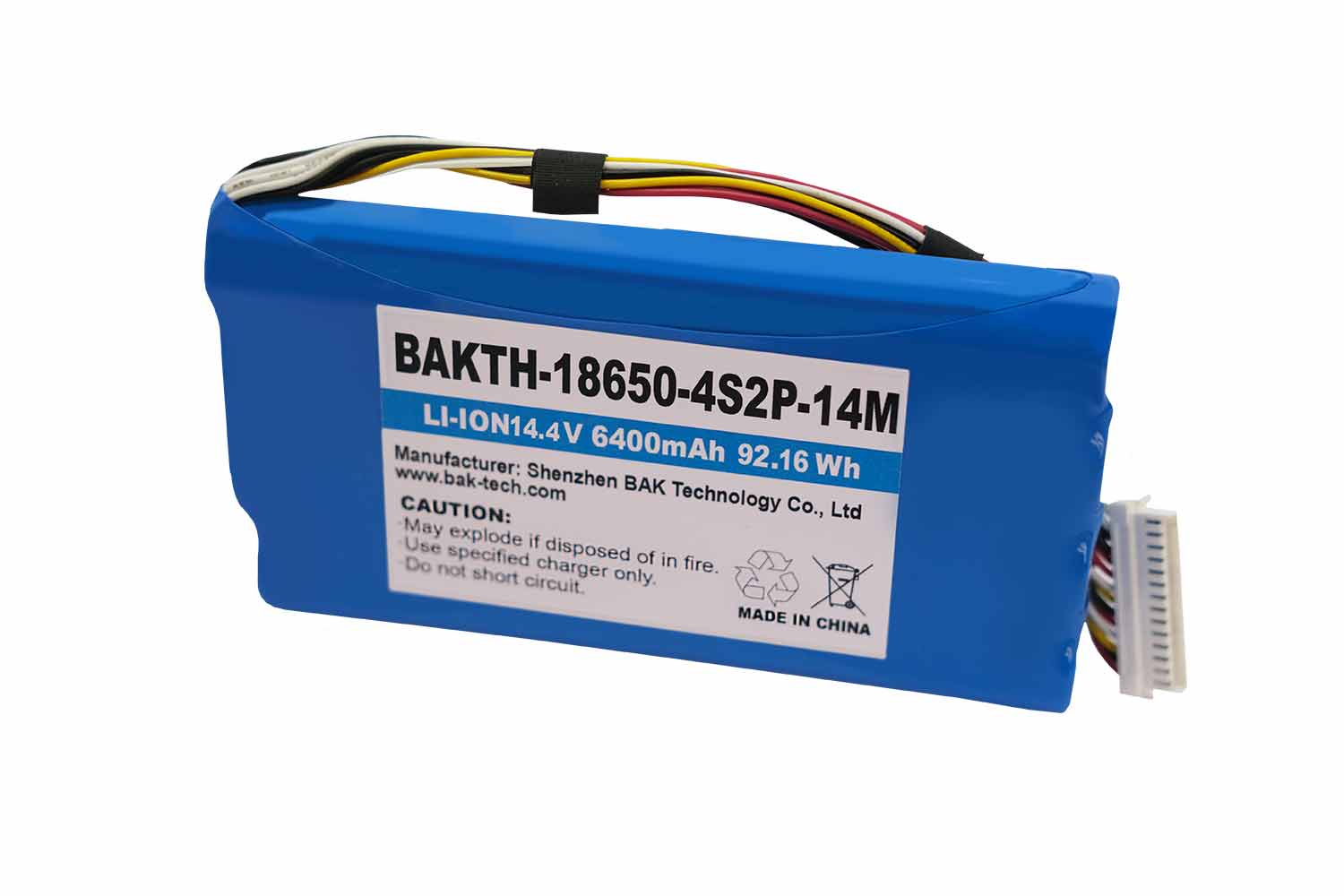

BAKTH-18650-4S2P-14M, 14.4V, 6400mAh, 92.16 Wh

BAK Technologies is proud to offer the BAKTH-18650-4S2P-14M, a high-performance 14.4 V 6400 mAh 92.16 Wh 4S2P Lithium Ion Battery pack designed to power a wide range of portable devices across medical, consumer, and industrial applications. What sets our 18650 lithium ion battery pack apart is its smart IC with a 14PINs connector, ensuring versatile and secure connections for sophisticated electronics that require reliable power management.

Our battery’s core specs: 14.4 V, 6400 mAh capacity, which delivers a substantial 92.16 Wh of energy. The configuration of the battery is a 4S2P setup. This design includes 4 cells in series paired in 2 parallel connections. This lithium ion 18650 battery pack designed to maximize energy density and to enhances the overall stability and lifespan. Speaking of lifespan: it surpassing 500 cycles. We built a battery to last and deliver consistent performance. We kept in mind portable applications where space and weight are critical factors, so even the battery is strong, it is still compact.

The dimensions are 20x76x138 mm, and it weighs approximately 400g. This customized lithium ion battery pack includes a PCB with a smart IC. The PCB helps to prevent overcharging so the battery operates within safe parameters. Some more specs to mention: max charging voltage is 16.8 V, the cut-off voltage of 11.2 V, the maximum charging and discharging currents both are 3A. We believe this is the most popular type among our clients and devices the battery is designed for.

* Max charging voltage:16.8V
* Cut-off voltage:11.2V
* Max constant charging current: 3A
* Max constant discharging current: 3A;
* PCB with smart IC with 14PINs connector;
* For different portable devices of medical, consumer and industrial application
